ZDY2300 rig, also known as the ZDY2300 ZDY2300 hydraulic drilling machine, tunnel drilling rig, ZDY2300 coal mine hydraulic tunnel drilling rig is widely used in coal mine gas drainage drilling (row), hole grouting fire prevention hole, coal seam water injection hole, the outburst pressure relief hole, hole, hole exploration geological exploration and other drilling Engineering in coal mine. The main use of hard alloy, diamond composite bit rotary drilling, but also with the large diameter of the spiral drill pipe and core drill, suitable for different drilling requirements.

Use and scope of use:

ZDY-2300 drilling rig is suitable for composite drilling, diamond drilling and core drilling. Drilling geological exploration hole, water injection hole, drainage hole and other engineering holes.

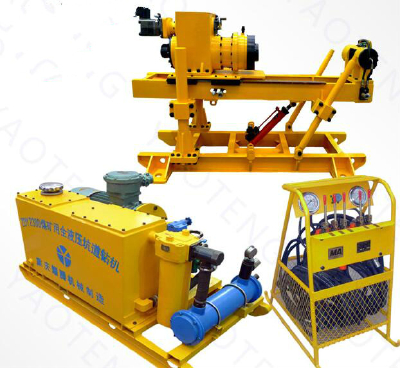

ZDY2300 drilling rig

Main structure:

ZDY-2300 drilling rig is composed of pump station, power head, frame, column frame, drilling tool and control platform.

ZDY2300 hydraulic drill

Main technical parameters

Brand: Yao Teng origin: Chongqing, China

Drilling depth 300 m

End hole diameter 94, 133, 153 mm

Drilling inclination o -90~ 90

Rated output speed r/min 95/192

Rated output torque N.m 2300/1000

Knot force 100 kn

Lifting force 70 kn

Motor power 37KW

Host size 1000 x 1478 x 2240

The weight of the whole machine is 2226 kg

ZDY2300 tunnel drilling rig

Main features:

1, ZDY2300 drilling rig with full hydraulic power head structure, sub host, pumping station, the three control units, the disintegration of good, easy to move, drill field layout flexible;

2, ZDY2300 tunnel drilling rig by mechanical drilling screw unloading, reduce labor intensity, improve work efficiency;

3, the oil cylinder directly to enter and pull up the drilling tool, the structure is simple, safe and reliable, to enter the lifting capacity, improve the ability of drilling rig handling accident;

ZDY2300 rig rig

4, ZDY2300 drilling rig with a single pump system, the system is simple, stepless speed regulation, speed and torque adjustment range, drilling technology to adapt to the strong;

5, ZDY2300 drilling safety control station centralized operation, personnel can stay away from the orifice, is conducive to personal safety;

6, ZDY2300 drilling rig hydraulic system protection device is complete, reliable performance. Hydraulic components, universal, easy to repair.
