Hydraulic tunnel drilling rig ZDY4000S full hydraulic drilling rig manufacturer of high quality

Hydraulic tunnel drilling rig ZDY4000S full hydraulic drilling rig manufacturer of high quality

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: chongqing
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-08-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  chongqing
  • Brand Name:  yaoteng
  • Model Number:  ZDY4000S

ZDY4000S rig, also known as the ZDY4000S ZDY4000S hydraulic drilling machine, tunnel drilling rig, ZDY4000S coal mine full hydraulic tunnel drilling rig is based in the summary of many years of research and development of coal mine gas pumping, through in-depth field research, combined with the actual situation of China's coal mine and the development of a new and efficient rig, have greatly improved the practicability and reliability and drilling efficiency, drilling capacity, safety and other aspects, is a kind of ideal replacement products.

Use and scope of use:

ZDY4000S rig is a kind of power head drill, the machine adopts frame type steel structure, the commutation, overflow and decompression mechanism can achieve more accurate, wide speed range, large torque, pull into the node capacity requirements; to meet the construction requirements of geological exploration holes, tile drainage hole, period of exploration hole the water injection hole hole, engineering etc..

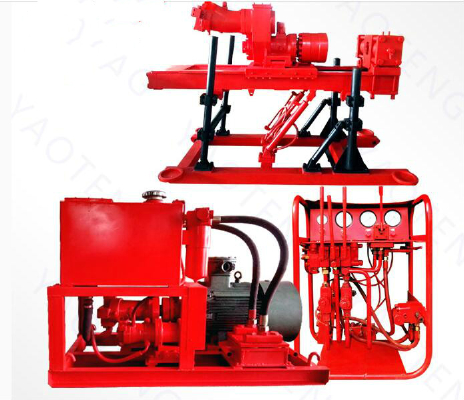

ZDY4000S type drilling machine

Main technical parameters:

Brand: Yao Teng origin: Chongqing, China

Drilling depth 350 m

End hole diameter mm 150/200

Drill pipe diameter 73 mm

Drilling inclination 0~ -90o

Rated torque 4000 N.m

Rated r/min 5~280

Maximum feeding force 150 KN

Maximum pulling force of 123 KN

Inlet velocity m/s 0~0.26

Knot in stroke 600 mm

Motor power 55 KW

Host size mm 2160*1025*1570

The weight of the whole machine is 2100 kg

ZDY4000S hydraulic drill

Main features:

1, ZDY4000S drilling rig with a reasonable hydraulic system and high quality hydraulic components and the system is relatively simple, not only to ensure the efficiency and torque of the rig, but also to ensure the simplicity of the maintenance;

ZDY4000S rig rig

2, ZDY4000S hydraulic rig adopts double oil saving adjustment circuit, reduce the impact drill in the process of using effect, ensure the rig operation is relatively stable.

ZDY4000S coal mine drilling rig

3, the equipment greatly reduces the labor intensity of workers in the process of operation, improve the engineering efficiency, and ensure the quality of the project.

4, ZDY4000S has the advantages of convenient disassembly, convenient for tunnel drilling rig transportation etc..


  • Place of Origin:  chongqing
  • Brand Name:  yaoteng
  • Model Number:  ZDY4000S
